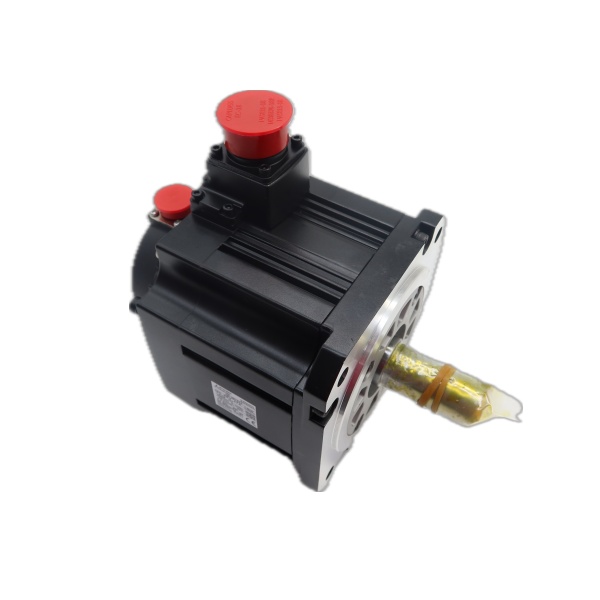

AC Brushless Rotary Servo Motor HG-SR1524

Short Description:

We're one of the most professional FA One-stop suppliers in China.Our main products including servo motor, planetary gearbox, inverter and PLC, HMI.Brands including Panasonic, Mitsubishi, Yaskawa, Delta, TECO, Sanyo Denki ,Scheider, Siemens , Omron and etc.; Shipping time: Within 3-5 working days after getting the payment. Payment way: T/T, L/C, PayPal, West Union, Alipay, Wechat and so on

Send email to us Whatsapp Email

Product Detail

Product Tags

Sichuan HongJun Technology Co., Ltd.

We have more than 10 years of experience in products used in the field of industrial automation! We mainly focus on industrial automation products, such as servo motor, PLC, HMI,Variable-frequency Drive, circuit breakers, contactors, surgeprotector, thermostat, encoder, relays,and IGBT! Our automation products have been exported to more than 50 countries and regions!

We have our own brand Hongjun, and also have close and long-term cooperation with other well-known brands! Because of our high quality, competitive price and fast delivery, we have helped most of our customers succeedin their market! We will constantly improve ourselves to meet more requirements of customers!

Specifications

FA-Servo-Motion: Servo Motor

Series	MELSERVO-J4
Type	HG-SR
Power Supply (V)	400
Rated Capacity (kW)	1,5
Inertia	MEDIUM INERTIA
Rated Torque (Nm)	7,2
Maximum Torque (Nm)	21,5
Rated Speed (rpm)	2000
Maximum Speed (rpm)	3000
Inertia (kg*cm2)	16
Brake	NO
Shaft Type	STRAIGHT SHAFT
Protection Class	IP67
Current Type	AC
Encoder Type	22-BIT
Encoder Resolution (p/rev)	4194304
