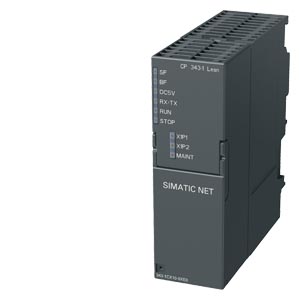

Product Display
Specification
| Product | |||
| Article Number (Market Facing Number) | 6GK7343-1CX10-0XE0 | ||
| Product Description | Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write, S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s | ||
| Product family | CP 343-1 Lean | ||
| Product Lifecycle (PLM) | PM400:Phase out announcement | ||
| PLM Effective Date | Product phase-out since: 2023.10.01 | ||
| Delivery information | |||
| Export Control Regulations | AL : N / ECCN : N | ||
| Factory Production Time | 1 Day/Days | ||
| Net Weight (kg) | 0.299 Kg | ||
| Packaging Dimension | 25.00 x 210.00 x 290.00 | ||
| Package size unit of measure | MM | ||
| Quantity Unit | 1 Piece | ||
| Packaging Quantity | 1 | ||
| Additional Product Information | |||
| EAN | 4019169145060 | ||
| UPC | 662643193862 | ||
| Commodity Code | 85176200 | ||
| LKZ_FDB/ CatalogID | IK-A | ||
| Product Group | X0AI | ||
| Group Code | R322 | ||
| Country of origin | Germany | ||
| Compliance with the substance restrictions according to RoHS directive | Since: 2007.08.28 | ||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||
| WEEE (2012/19/EU) Take-Back Obligation | - | ||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||
| SCIP number | 8f510228-6434-4247-9e67-f1bd0453490c | ||
